$INDEX_ROOT と $I30

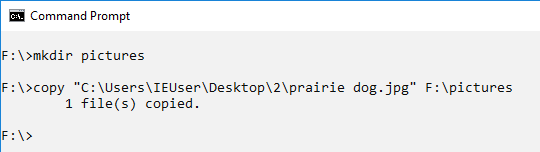

 $I30のバイナリ構造を確認します。

f:id:hideakii:20170918074121p:plain

Autopsyで Pirctures フォルダの File Metadata を確認します。「$INDEX_ROOT (144-1)   Name: $I30」が Resident として存在している事を確認できます。

From The Sleuth Kit istat Tool:

MFT Entry Header Values: Entry: 39        Sequence: 1

$LogFile Sequence Number: 1078084

Allocated Directory Links: 1

$STANDARD_INFORMATION Attribute Values: Flags:

Owner ID: 0Security ID: 264  (S-1-5-21-1901480256-120802936-2790681297-1000)

Created: 2017-09-17 22:39:03.019912200 (UTC)

File Modified: 2017-09-17 22:39:39.366135400 (UTC)

MFT Modified: 2017-09-17 22:39:39.366135400 (UTC)

Accessed: 2017-09-17 22:39:39.366135400 (UTC)

$FILE_NAME Attribute Values: Flags:Directory

Name: picturesParent MFT Entry: 5

Sequence: 5

Allocated Size: 0

Actual Size: 0

Created: 2017-09-17 22:39:03.019912200 (UTC)

File Modified: 2017-09-17 22:39:03.019912200 (UTC)

MFT Modified: 2017-09-17 22:39:03.019912200 (UTC)

Accessed: 2017-09-17 22:39:03.019912200 (UTC)
Attributes:

Type: $STANDARD_INFORMATION (16-0)   Name: N/A   Resident   size: 72

Type: $FILE_NAME (48-2)   Name: N/A   Resident   size: 82Type: $INDEX_ROOT (144-1)   Name: $I30   Resident   size: 160

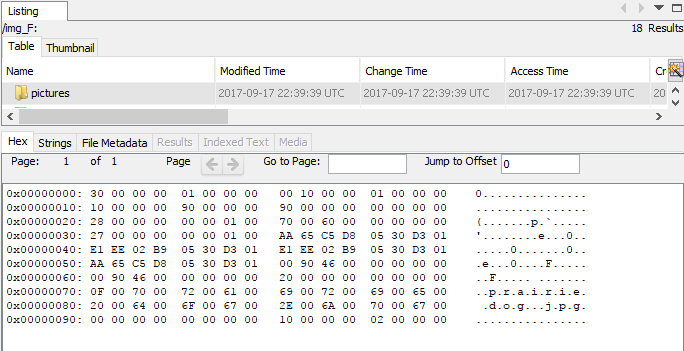

Autopsy の HEX タブで$INDEX_ROOTの$I30データ内容を確認します。

f:id:hideakii:20170918074348p:plain

0x00000000: 30 00 00 00 01 00 00 00 00 10 00 00 01 00 00 00 0...............
0x00000010: 10 00 00 00 90 00 00 00 90 00 00 00 00 00 00 00 ................
0x00000020: 28 00 00 00 00 00 01 00 70 00 60 00 00 00 00 00 (.......p.`.....
0x00000030: 27 00 00 00 00 00 01 00 AA 65 C5 D8 05 30 D3 01 '........e...0..
0x00000040: E1 EE 02 B9 05 30 D3 01 E1 EE 02 B9 05 30 D3 01 .....0.......0..
0x00000050: AA 65 C5 D8 05 30 D3 01 00 90 46 00 00 00 00 00 .e...0....F.....
0x00000060: 00 90 46 00 00 00 00 00 20 00 00 00 00 00 00 00 ..F..... .......
0x00000070: 0F 00 70 00 72 00 61 00 69 00 72 00 69 00 65 00 ..p.r.a.i.r.i.e.
0x00000080: 20 00 64 00 6F 00 67 00 2E 00 6A 00 70 00 67 00 .d.o.g...j.p.g.
0x00000090: 00 00 00 00 00 00 00 00 10 00 00 00 02 00 00 00 ................

 NTFS Documentation のページ25「10. Attribute - $INDEX_ROOT (0x90)」を参考にパースしてみます。

10.2.1. Index Root

30 00 00 00 01 00 00 00 00 10 00 00 01 00 00 00

30 00 00 00 Attribute Type

01 00 00 00 Collation Rule ⇒ Filename

00 10 00 00 Size of Index Allocation Entry (bytes)  0x1000 ⇒4,096

01 Clusters per Index Record

00 00 00 Padding

10.2.2. Index Header

 10 00 00 00 90 00 00 00 90 00 00 00 00 00 00 00

10 00 00 00 Offset to first Index Entry 0x10⇒16

90 00 00 00 Total size of the Index Entries 0x90⇒144

90 00 00 00 Allocated size of the Index Entries 0x90⇒144

00 Flags⇒Small Index (fits in Index Root)

00 00 00 Padding

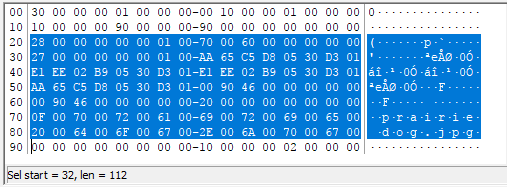

f:id:hideakii:20170918081744p:plain

11.2.1. Index Entry

28 00 00 00 00 00 01 00 70 00 60 00 00 00 00 00

28 00 00 00 00 00 01 00 File reference 0x28 ⇒ 40 Seq 1 prairie dog.jpg

70 00 L = Length of the index entry 0x70 ⇒ 112

60 00 M = Length of the stream 0x60 ⇒ 96

00 Flags

00 00 00

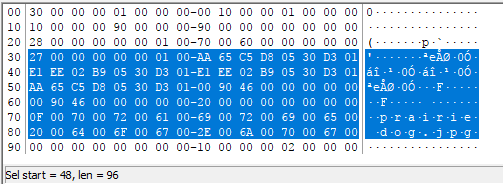

f:id:hideakii:20170918082815p:plain

f:id:hideakii:20170918082901p:plain

4. Attribute - $FILE_NAME (0x30)

27 00 00 00 00 00 01 00 AA 65 C5 D8 05 30 D3 01
E1 EE 02 B9 05 30 D3 01 E1 EE 02 B9 05 30 D3 01
AA 65 C5 D8 05 30 D3 01 00 90 46 00 00 00 00 00
00 90 46 00 00 00 00 00 20 00 00 00 00 00 00 00
0F 00 70 00 72 00 61 00 69 00 72 00 69 00 65 00
20 00 64 00 6F 00 67 00 2E 00 6A 00 70 00 67 00

27 00 00 00 00 00 01 00 File reference to the parent directory. ⇒ 39 Seq 1

AA 65 C5 D8 05 30 D3 01 C Time - File Creation

E1 EE 02 B9 05 30 D3 01 A Time - File Altered (Modification)

E1 EE 02 B9 05 30 D3 01 M Time - MFT Changed

AA 65 C5 D8 05 30 D3 01 R Time - File Read (Access)

00 90 46 00 00 00 00 00 Allocated size of the file 0x469000⇒4,624,384

00 90 46 00 00 00 00 00 Real size of the file 0x469000⇒4,624,384

20 00 00 00 Flags, e.g. Directory, compressed, hidden

00 00 00 00 Used by EAs and Reparse

0F Filename length in characters (L)

00 Filename namespace 0x42 2L File name in Unicode (not null terminated)

70 00 72 00 61 00 69 00 72 00 69 00 65 00 p.r.a.i.r.i.e.

20 00 64 00 6F 00 67 00 2E 00 6A 00 70 00 67 00 .d.o.g...j.p.g.

11.2.1. Index Entry

00 00 00 00 00 00 00 00 10 00 00 00 02 00 00 00

00 00 00 00 00 00 00 00 File reference

10 00 L = Length of the index entry 0x10 ⇒ 16

00 00 M = Length of the stream 0x00 ⇒ 00

02 Flags ⇒ Last index entry in the node

00 00 00



f:id:hideakii:20170918141136j:plain
